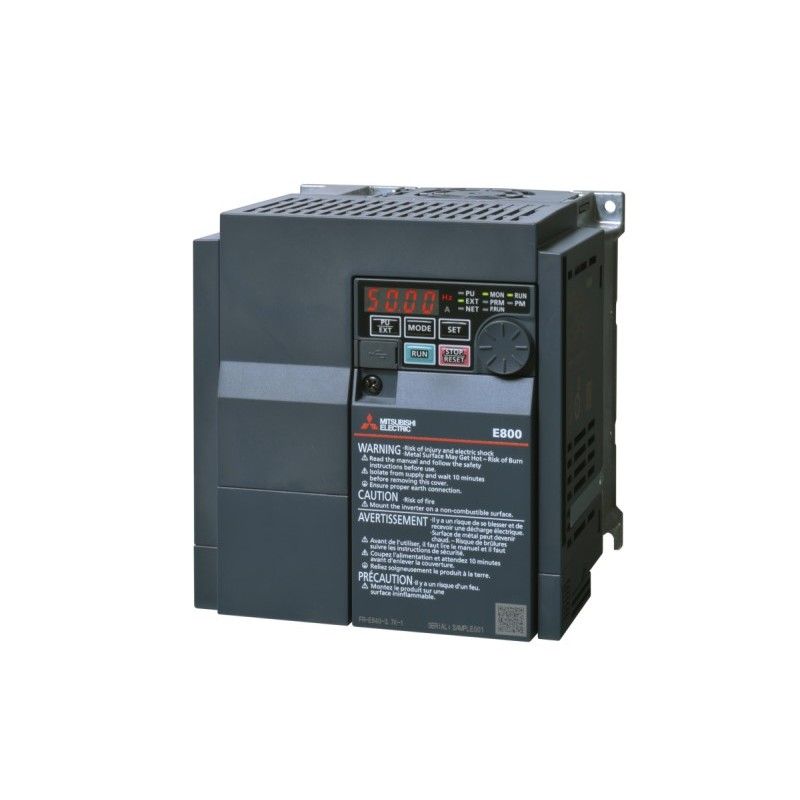

FR-E840-0095-4-60

Inverter; Pn:3,7-5,5kW;3x380-480V;In max:11,1A;(3,7kW;9,5A);RS-485;IP20

---

Seria	FR-E800 SERIES
Typ	FR-E800 RS485 INVERTER
Minimum Rated Voltage (V)	380
Min. Permissible Voltage (V)	323
Maximum Rated Voltage (V)	480
Max. Permissible Voltage (V)	528
Rodzaj prądu	AC
Fazy	3
Rated Output Current LD (A)	11,1
Rated Output Current ND (A)	9,5
Rated Motor Capacity LD (kW)	5,5
Rated Motor Capacity ND (kW)	3,7
Zakres częstotliwości (Hz)	0,2–590
Control Method	V/F CONTROL, REAL SENSORLESS VECTOR CONTROL, PM SENSORLESS VECTOR CONTROL, MAGNETIC FLUX VECTOR CONTROL
Motor Type	INDUCTION MOTOR, PM MOTOR
Brake Chopper ED (%)	100
Integrated EMC Filter	NO
Safe Torque Off (STO)	YES
Regenerative (4Q)	NO
Integrated DC Choke	NO
Display	BUILT-IN
Display Type	4 DIGITS LED
PLC Function	YES
Program Memory	2K
Program Memory Unit	STEPS
Zintegrowane wejścia cyfrowe	7
Digital Outputs (Transistor)	2
Digital Outputs (Relay)	1
Zintegrowane wejścia analogowe	2
Zintegrowane wyjścia analogowe	1
IO Type of Terminal Block	SPRING CLAMP
Expandable	YES
RS-485	1
USB	1 (MINI B)
Ethernet Port	NO
Built-In Network	MODBUS-RTU
Prąd upływu (mA)	1,2
Power Loss LD (W)	136
Power Loss ND (W)	112
Klasa ochrony	IP20
