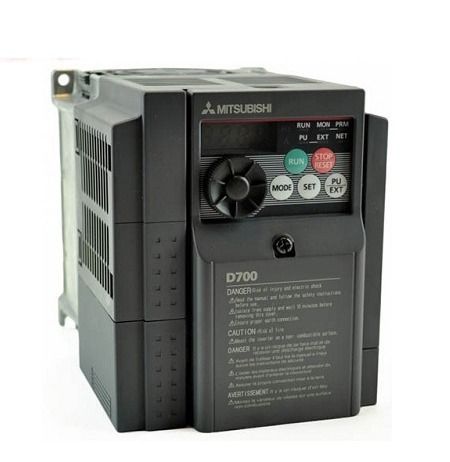

FR-D740-3.7K-CHT
1 122.96zł
Cena zawiera podatek VAT (23%) 209.98zł
Dostępny
Poleć produkt swoim znajomym
FR-D740-3.7K-CHT
Szczegóły produktu
Inverter; Rated Power: 3,7kW; 3x380-480V; Rated Current: 8A@50°C; IP20
| Seria | FR-D700 SERIES |
|---|---|
| Typ | FR-D700 COMPACT INVERTER |
| Minimum Rated Voltage (V) | 380 |
| Min. Permissible Voltage (V) | 325 |
| Maximum Rated Voltage (V) | 480 |
| Max. Permissible Voltage (V) | 528 |
| Rodzaj prądu | AC |
| Fazy | 3 |
| Rated Output Current ND (A) | 8 |
| Rated Motor Capacity ND (kW) | 3,7 |
| Zakres częstotliwości (Hz) | 0,2–400 |
| Control Method | V/F CONTROL, SOFT-PWM/HIGH FREQUENCY PWM , MAGNETIC FLUX VECTOR CONTROL |
| Motor Type | INDUCTION MOTOR |
| Brake Chopper ED (%) | 30 |
| Integrated EMC Filter | NO |
| Safe Torque Off (STO) | YES |
| Regenerative (4Q) | NO |
| Integrated DC Choke | NO |
| Display | BUILT-IN |
| Display Type | 4 DIGITS LED |
| PLC Function | NO |
| Zintegrowane wejścia cyfrowe | 5 |
| Digital Outputs (Transistor) | 1 |
| Digital Outputs (Relay) | 1 |
| Zintegrowane wejścia analogowe | 2 |
| Zintegrowane wyjścia analogowe | 1 |
| IO Type of Terminal Block | SPRING CLAMP |
| Expandable | NO |
| RS-485 | 1 |
| USB | NO |
| Ethernet Port | NO |
| Built-In Network | MODBUS-RTU |
| Prąd upływu (mA) | 1 |
| Power Loss ND (W) | 180 |
| Standby Power Consumption (W) | 10,5-17 |
| Klasa ochrony | IP20 |
Wyświetl ceny w:PLN
